ARMAS Hydraulic Control Valves

Abdullah Fire Protection Pakistan is the authorize distributor and service provider of Armas Hydraulic Control Valves in Pakistan. Armaş 800 series automatic hydraulic control valves are designed in the “Y” body model type so as to show maximum resistance to cavitation under minimum head loss in high flow rates. Armaş 800 series automatic hydraulic control valves are double-chamber diaphragm actuated and disc closed type. Valve has a standard double control chamber.

Brand: ARMAS Turkey

Body: Ductile Iron (GGG50)

Available Sizes: 1½” (40 mm) - 16” (400 mm)

Available Connection Types: Flanged (ISO - ANSI)

Available Pressure Norms: PN16 - PN25 - PN40

Max. Operation Temperature: 80 C

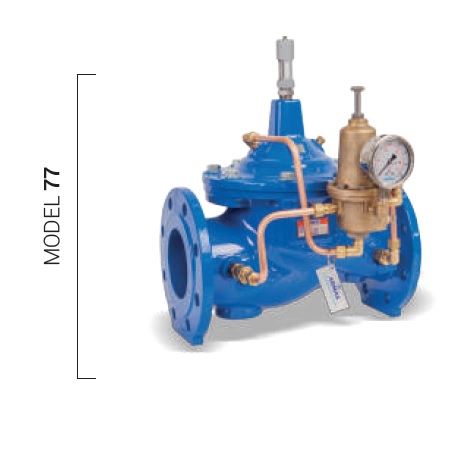

Armaş 700 series automatic hydraulic control valves are designed in the “Globe” body model type so as to show maximum resistance to cavitation under low head loss in high flow rates. Armaş 700 series automatic hydraulic control valves are single-chamber diaphragm actuated and disc closed type. Armaş 700 Series provide lower-pressure operation due to its special diaphragm than other control valves.

Brand: ARMAS Turkey

Body: Ductile Iron (GGG50)

Available Sizes: 2” (50 mm) - 8” (200 mm)

Available Connection Types: Flanged (ISO - ANSI)

Available Pressure Norms: PN16 - PN25

Max. Operation Temperature: 80 C

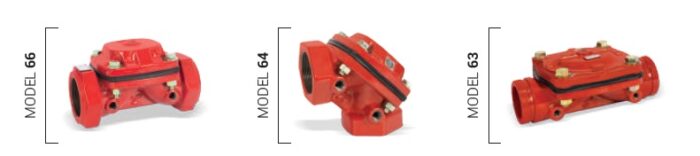

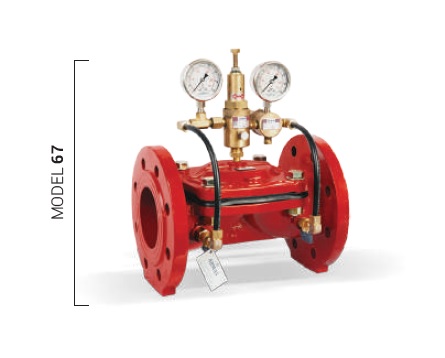

Armaş 600 series valves are the direct diaphragm closing automatic hydraulic control valves which work with line pressure. It ensures easy and smooth flow with minimum pressure losses thanks to excellent design of valve body and diaphragm.

Brand: ARMAS Turkey

Body: Ductile Iron (GGG40) - Cast Iron (GG25)

Available Sizes: 1½” (40 mm) - 12” (300 mm)

Available Connection Types: Threaded, Flanged, Grooved End

Available Pressure Norms: PN10 - PN16 - PN25

Max. Operation Temperature: 80 C
